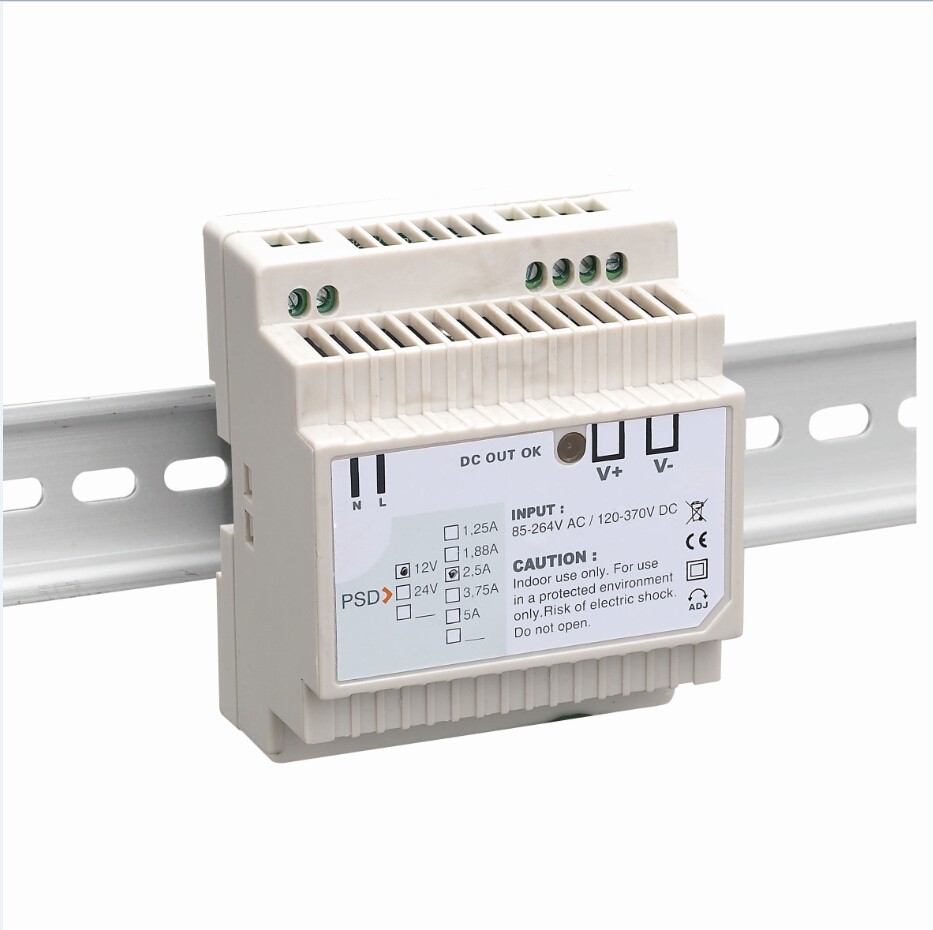

| Model Specification | DR-30-5 | DR-30-12 | DR-30-15 | DR-30-24 |
| DC output voltage | 5V | 12V | 15V | 24V |
| Rated current | 3A | 2A | 2A | 1.5A |
| Current range | 0-3A | 0-2A | 0-2A | 0-1.5A |
| Rated power | 15W | 24W | 30W | 35W |
| Voltage ADJ.Range | 4.75~5.5V | 10.8~13.2V | 13.5~16.5V | 21.6~26.4V |
| Voltage tolerance | ±2% | ±1% | ±1% | ±1% |
| Ripple and noise | 100mVp-p | 120mVp-p | 120mVp-p | 150mVp-p |
| Intrt stability | ±1% | ±1% |
±1% |
±1% |
| Load stability | ±1% | ±1% | ±1% | ±1% |
| AC voltage range | 85~264VAC 47~63Hz; 120~370VDC | |||
| Efficiency | 72% | 83% | 84% | 85% |
| current | 1.5A/115V 0.75/230V | |||
| AC Inrush current | Cold-start current 30A/115V 60A/230V | |||
| Leakage current | < 1mA/240VAC | |||
|
Overload |
105%~150% Type:pulsing hiccup shutdown Resete:auto recovery | |||
|
Over voltage |
8~10V | 15~16.5V | 28~33V | 568~65V |
| Setup,rise,hold up time | 800ms,60ms,50ms/230V | |||
| Vibration | 10~500Hz,2G 10min,/1 cycle | |||
| Withstand voltage | Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc | |||
| Isolation resistance | Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ | |||
| Temperature coeffi cient | ±0.03%/°C (0~50°C ) | |||
| Working temperature and humidity | -10°C ~+60°C,20%~90%RH | |||
| Store temperature and humidity | -20°C ~+85°C,10%~95%RH | |||
| Overall dimension | 78×93×56mm (L×W×H) | |||
| Weight | 0.27Kg | |||
| CE EMC Authenticate |
EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008 EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009 |
|||
| CE LVD Authenticate |
EN61347-1:2008T A1:2001 EN61347-2-13:2006 EN60950-1:2006+A11:2009+A1:2010+A12:2001 |
|||
| ROHS Authenticate |
EPA3050B:1996 EN1122B:2001 EPA3052:1996 EPA3060A:1996 EPA7196A:1992 EPA3540C:1996 EPA8270D:2007 IEC62321:2008 |
|||
